1 Used Quadro Underdriven Cone Mill Comil, model U20.

  Serial #: 0464.  Manufactured in 2004.

 This is a production scale, top feed, bottom discharge comil rated at up to 4,250 pounds per hour.

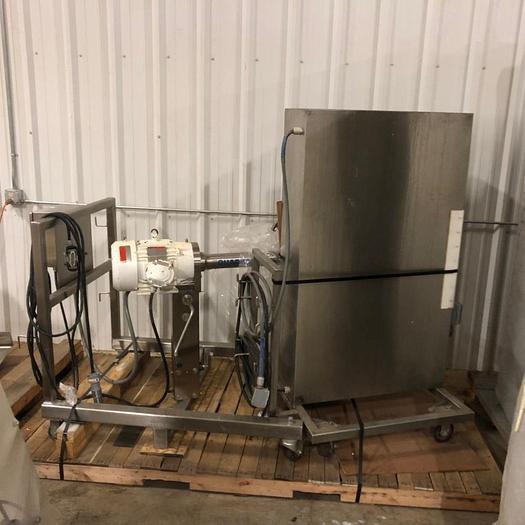

 Comes mounted to an all stainless steel base, on lockable castors.  Features include reduced heat generation at high throughput capacities, accurate PSD (Particle Size Distribution) controllability and efficient product processing for nearly 100% product recovery.

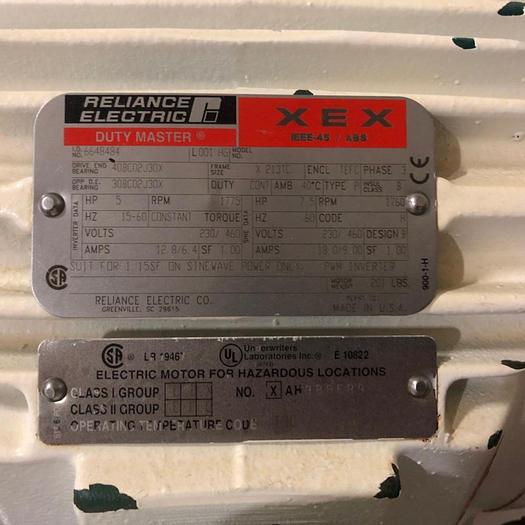

 Electrics:  5 HP, 3/60/230-460 volt drive, 450 to 2550 rpm and UL rated for hazardous locations.

 Complete with start/stop, e-stop controls and remote VFD control panel.

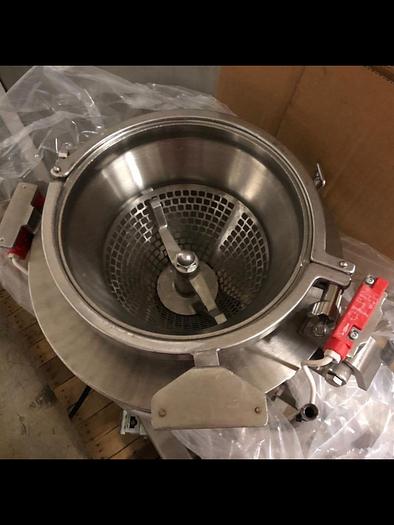

Currently equipped with a #2500 impeller and #600-800-4 screen.


ManufacturerQuadro U-20 Under-driven Comil
Stock Number33680
