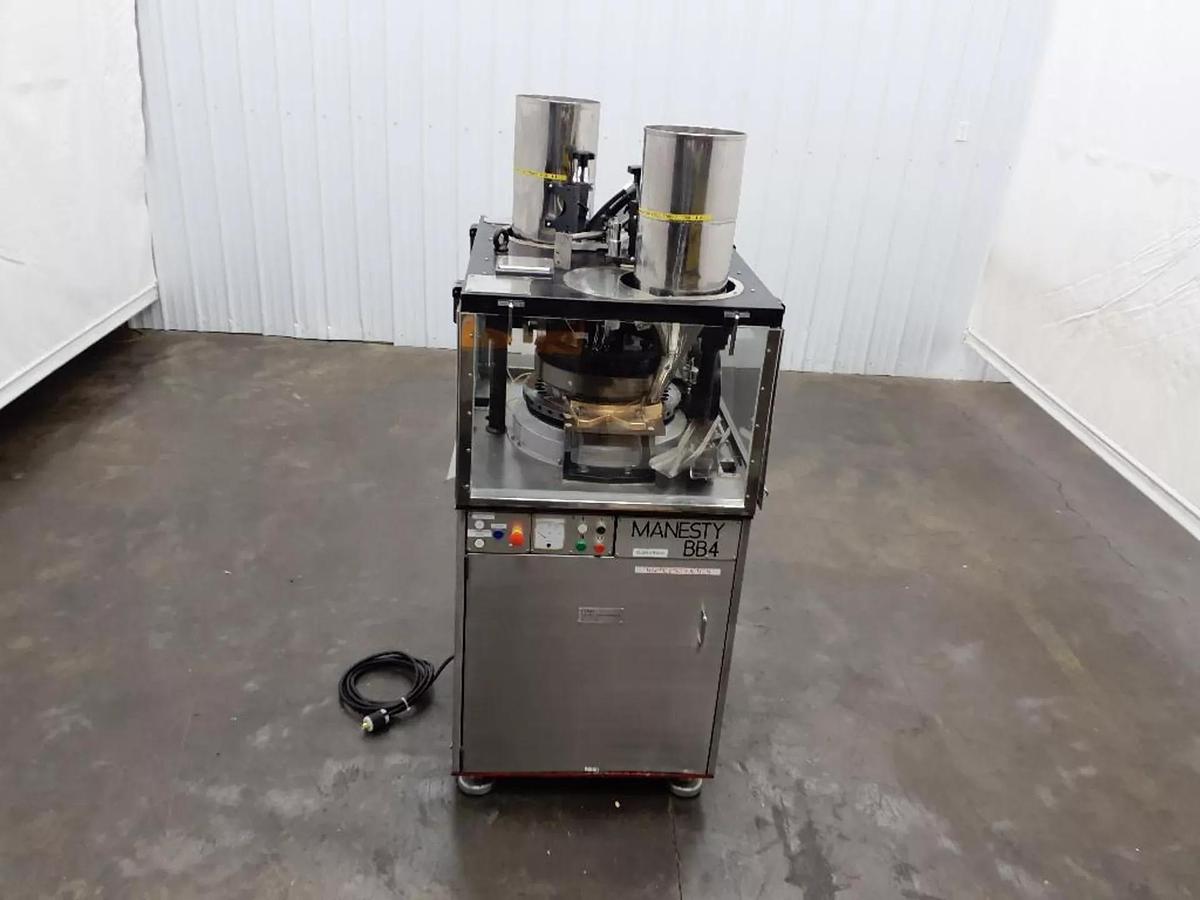

Manesty BB4 - 35 station Dual sided press

Used Manesty BB4 Tablet Press, 35 Station Dual Sided - 6.5 Ton

• Production output: up to 210,000 tablets per hour depending on size and application
• Maximum tablet size:
• Diameter: 0.625 inches (16 mm)
• Thickness: 0.34375 inches (8.5 mm)
• Depth of fill: 0.6875 inches (17.5 mm)
• Maximum tablet forming pressure: 6.5 tons
• Pressure roll diameter: 8 inches (203 mm)
• Punch pitch diameter: 15.125 inches (384 mm)
• Turret speed: from 17 to 50 rpm
• Tablet Die:
• Type: B
• Diameter: 1.1875 inches (30.1 mm)
• Height: 0.875 inches (22.22 mm)
• Upper/Lower punch length: 5.25 inches (133 mm)
• Punch body diameter: 0.75 inches (19.05 mm)

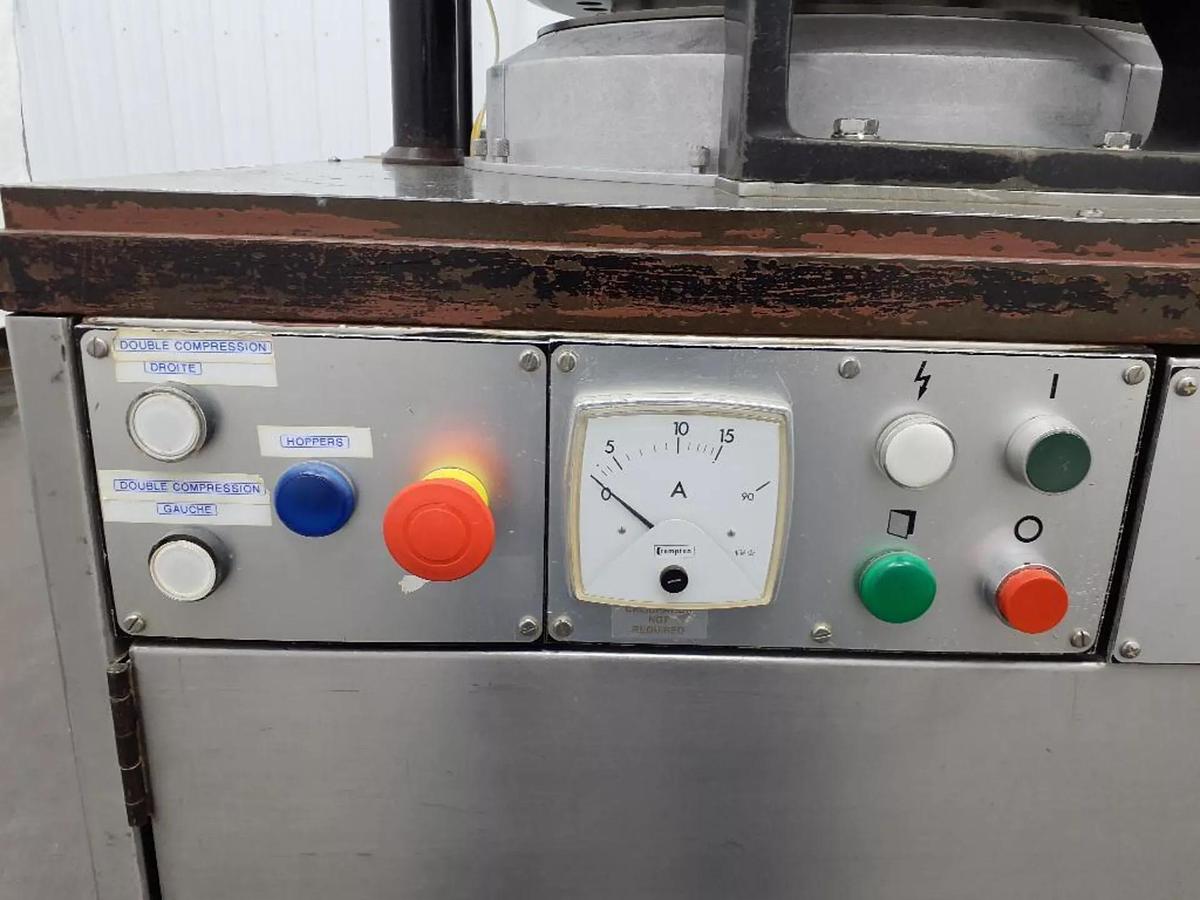

• Push button controls
• Approximate overall dimensions:
• Width: 32 inches (812 mm)
• Depth: 37 inches (940 mm)
• Height: 72 inches (1834 mm)
• Stainless steel construction
• Electrical: 3 Phase
