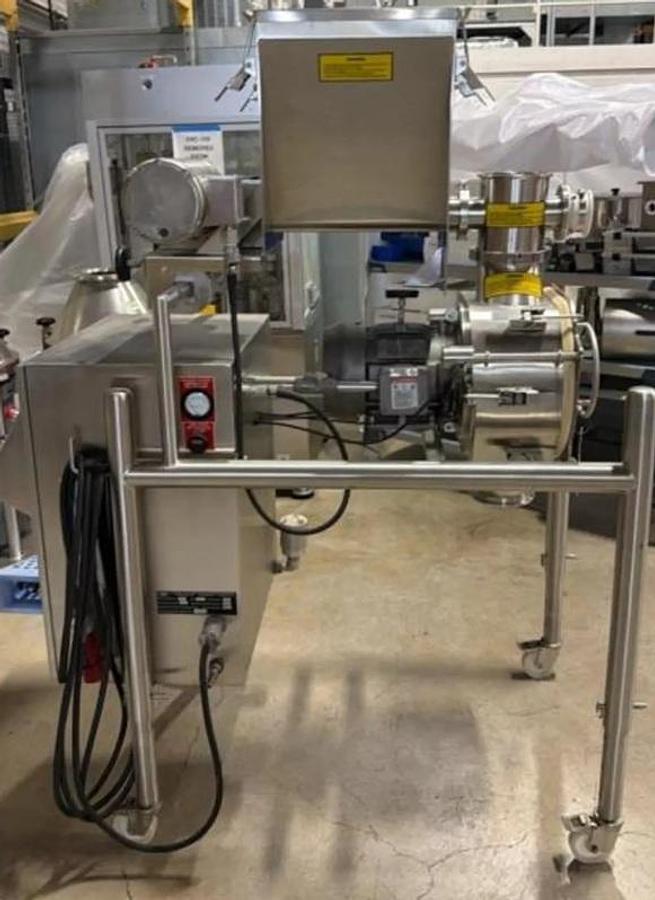

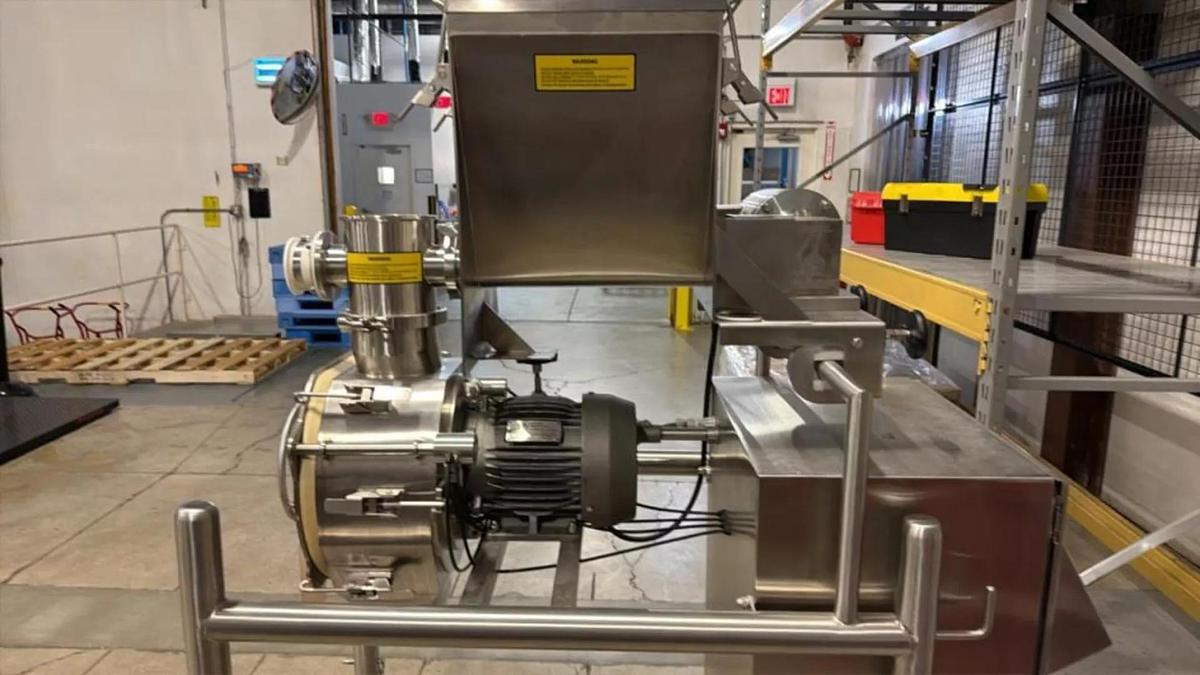

Fluid Air 7" Screw Fed GranuMill

Fluid Air Wet / Dry 7" Granumill.

Model; Granumill 007

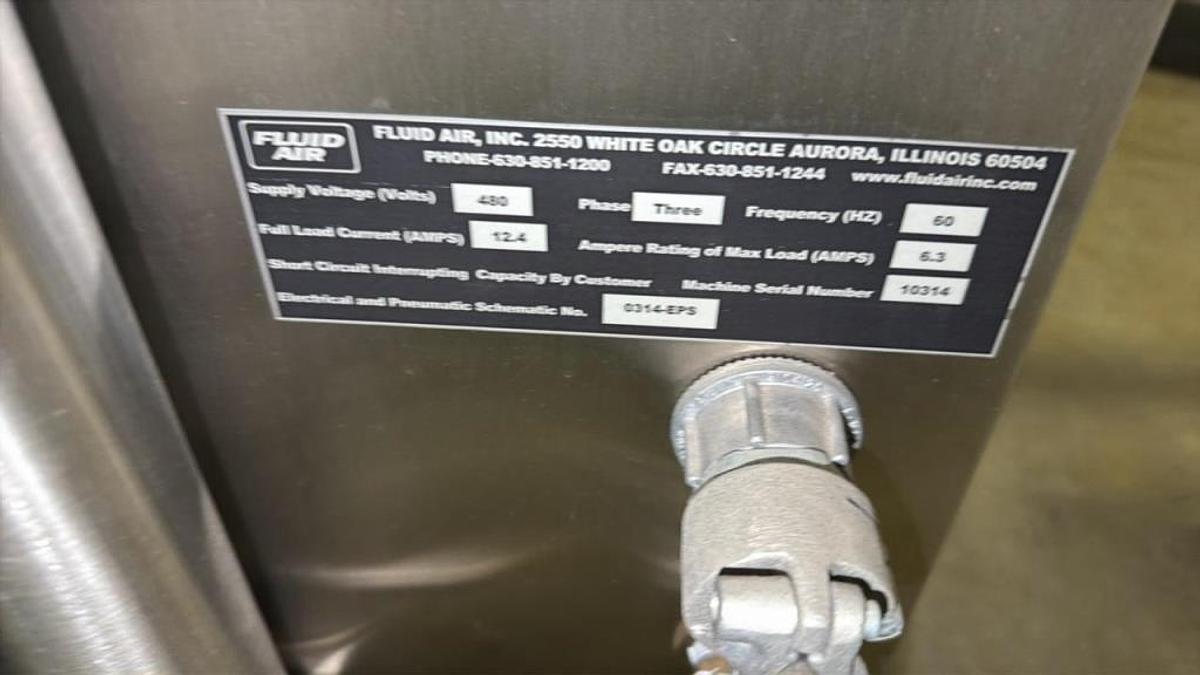

Serial Number; 10314

7" Pilot/Production Scale Wet/Dry Impact Mill with screw feed.

13.5" Ø rotor rated , 500 to 5000 RPM.

7" wide screen infinite sizes/porosity rated 175 to 200 microns

Continuous Throughput up to 1000kg/hr..

A typical GRANUMILL® system consists of an inlet, chamber with rotor, screen, and discharge. The critical process parameters of rotor speed and feed rate are tightly controlled to produce a narrow particle size distribution. Interchangable screens and rotor profiles allow for a variety of milling actions such as delumping, fracturing, and shredding. As both a screen mill and an impact mill in one machine
