Used GEA-Westfalia Disc Stack Centrifuge, Model CSC-6-06-476

Used GEA-Westfalia Disc Stack Centrifuge, Model CSC-6-06-476

$89,500 (USD)

Available quantity: 1

orCall (708)-366-8747

Description

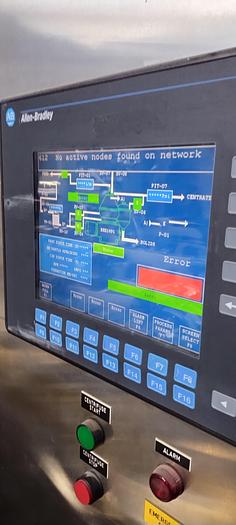

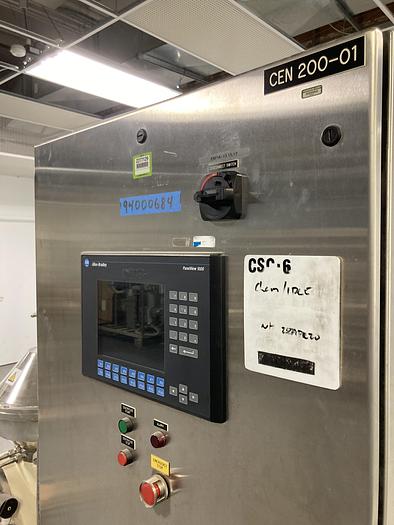

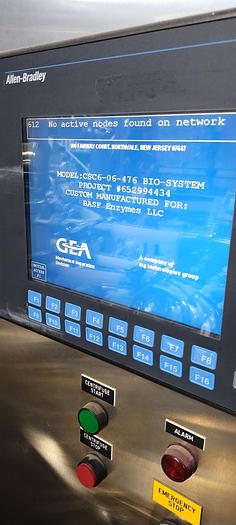

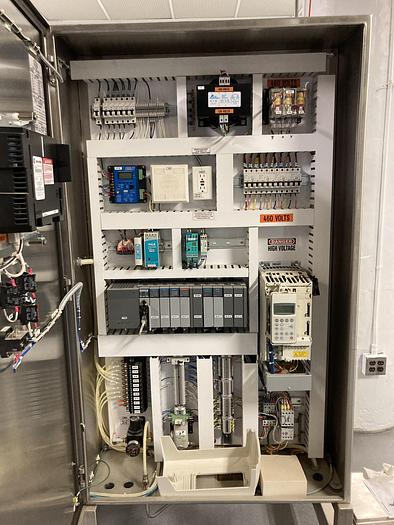

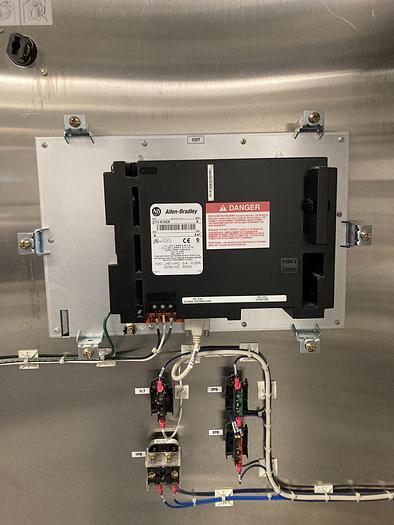

Used GEA-Westfalia Disc Stack Centrifuge, Model CSC-6-06-476.  Serial #: 1724-914.  Manufactured in 2005, machine is designed to separate liquids from solids with self cleaning disc stack separation technology.  Heavy Liquid g/l: 1.  Heavy Solids g/l:  1.4.  Maximum rpm of bowl:  11970.  Centrifuge is constructed in Stainless Steel and sits on a tubular stainless steel frame with PLC control panel, motor, pump and piping.  Comes with a sanitary Fristam centrifugal pump, model FPX 722-135 – 5 HP, rated at 80 gallons per minute, with 2” inlet/1-1/2” outlet.  Includes a 50l stainless steel receiving tank rated at 190°F @270psig and Allen Bradley PanelView 1000 color PLC.

Specifications

ManufacturerUsed GEA-Westfalia Disc Stack Centrifuge, Model CSC-6-06-476
ConditionUsed
Stock Number33792
