Natoli NP-500 Tablet press - 45 station D- tooling , mfg 2011

Natoli NP-500 Tablet press - 45 station D- tooling , mfg 2011

$159,000 (USD)

Available quantity: 1

orCall (708)-366-8747

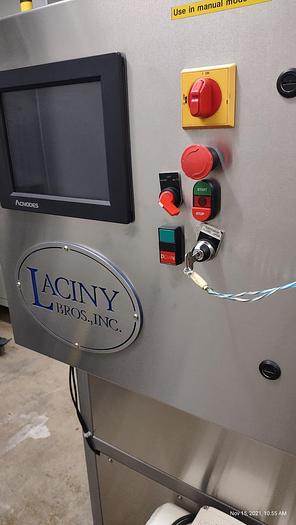

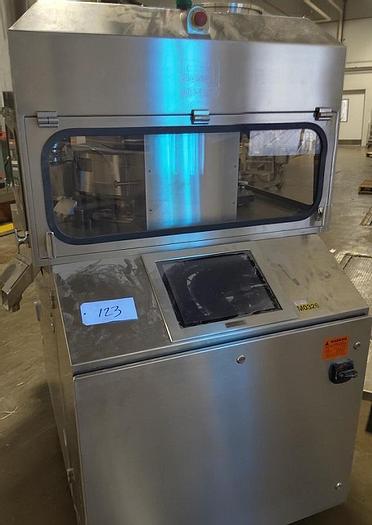

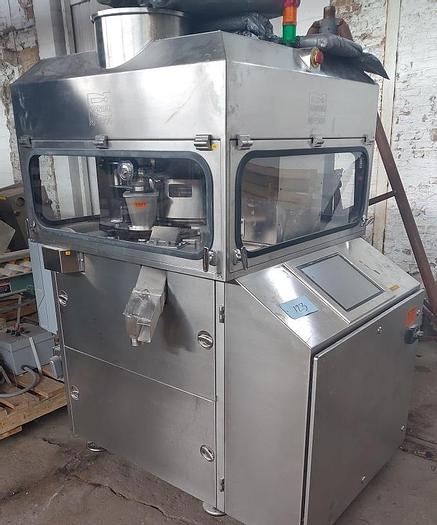

Used Natoli 45 Station Double Sided “D” Tooled Rotary Tablet Press, Model NP-500 with custom Laciny automated product feeder

Serial NP5-0607-004

Manufactured in 2011, is similar to and can accept the same tooling as a Stokes 328 Rotary Tablet Press.

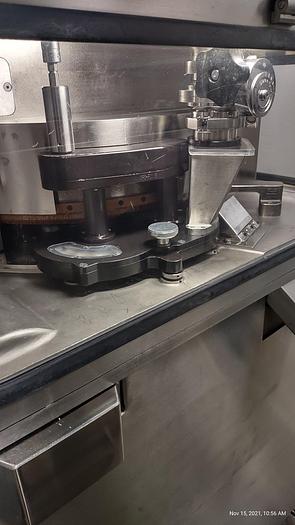

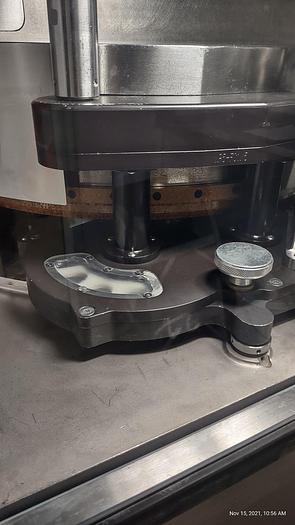

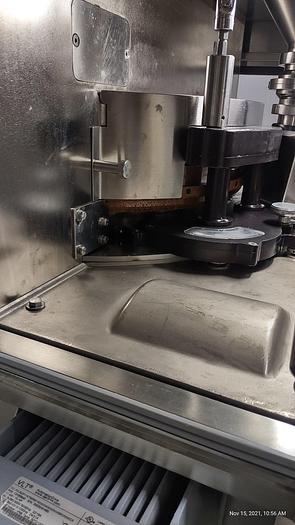

Heavy duty, double sided rotary tablet press equipped with force feed, low level hopper sensors, hardened steel die, auto tablet rejection.

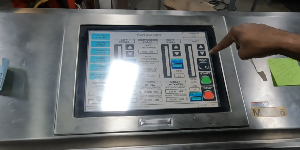

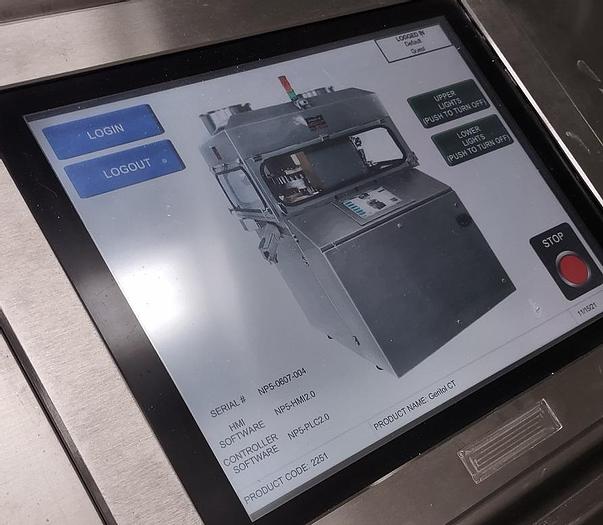

Allen-Bradley GuardShield safety light curtains, integrated touchscreen PLC controls, auto lubricated punch guides, auto tablet weight controls.

Tablet Specifications:

Maximum round tablet diameter: 7/8” (22.23mm).

Maximum shaped major axis: 15/16” (23.81mm).

Filling cams depth of fill range: Shallow: .0625 to .6875” (1.6 to 17.5mm).

Standard: .21875 to .875” (5.5 to 22mm).

Deep: .625 to 1.375” (16 to 35mm).

Tablets per minute: 900 to 5,500 (54,000 to 330,000/hour).

Machine features extended compression dwell time, 69% more than standard “D” fill, reducing the need for pre-compression and allowing increased tablet size and weight.

Equipped with automatic weight control for precise, consistent and accurate tablets.

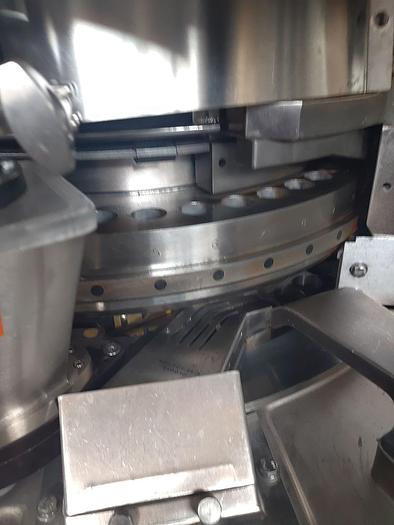

Press Specifications: Die diameter: 1-5/16” (33.24mm). Maximum die depth: 1-1/2” (38.1mm).

Punch barrel diameter: 1-1/8” (28.58mm). Hopper capacity: 1,700” ³. (27,858cm³).

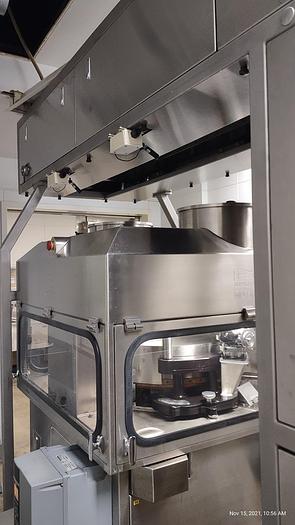

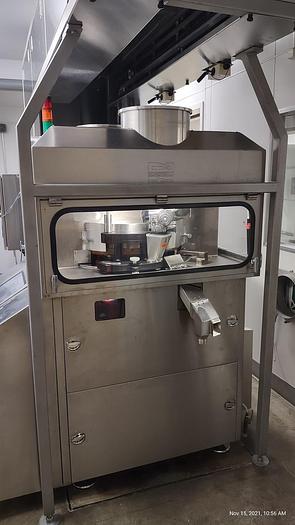

Machine is constructed in stainless steel and comes with 4 sided Plexiglas doors, with full monitoring, emergency safety switches,and emergency stop controls.

Capable of running single side machine with precompression.

Power and Specifications

15 HP, 3/60/460-volt drive, (VFD), 42-1/2 amps.

requires 90 psi air, 8.5 cmm vacuum at 76mm of H20.

Dimensions: 68” x 53” x 82” High.

Weight: 7,500 pounds.

Unit was last used in a large pharmaceutical facility and is available for immediate delivery.


ManufacturerNatoli NP-500 Tablet press - 45 station D- tooling , mfg 2011
Stock Number33631
